LS226 High Precision Coating Thickness Gauge
Applicable to flat plate coating thickness measurement
Gravity-based measurement, stable positioning
Dual screen design, easy reading
1-5 point calibration, suitable for complex applications
The coating thickness gauge can be used not only to measure non-magnetic coatings such as paint, varnish, enamel, chrome and galvanizing on ferromagnetism metal substrates such as steel or iron, but also measure Non-conductive coatings such as paint, anodized layers or ceramic on non-magnetic metal substrates such as copper, aluminum, die cast zinc, brass etc. The gauge automatically identifies the substrate and switch measurement mode. It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other fields.

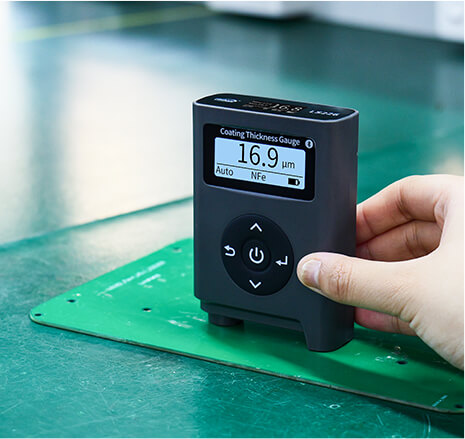

PCB board measurement

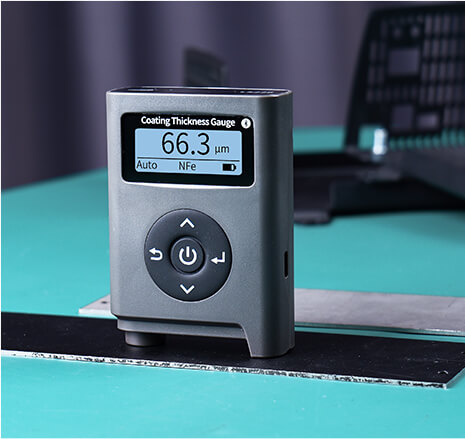

Aluminum profile measurement

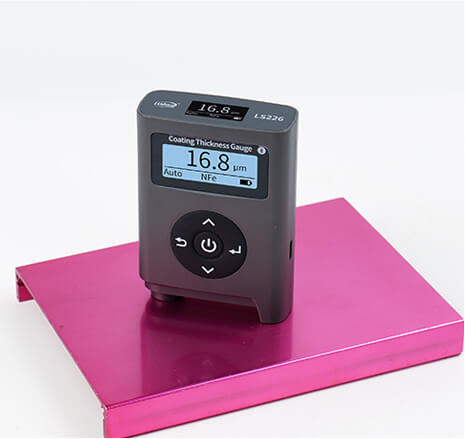

Paint coating measurement

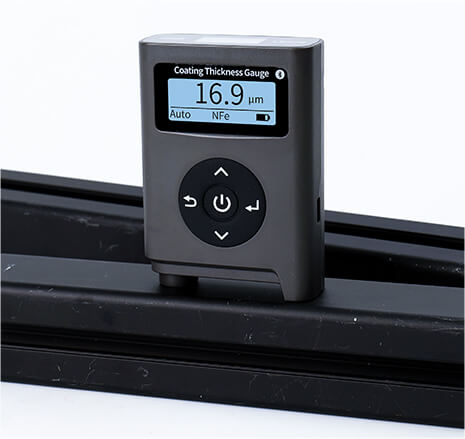

Anodized layer measurement
Copper foil measurement
Paint coating measurement
Parameters
| Parameter Name | Parameter Value |
|---|---|
| Probe tip | Cemented carbide |
| Measuring principle | Fe: Magnetic induction / NFe: Eddy current |
| Probe type | Integrated probe |
| Measuring range | 0.0-2000μm |
| Resolution | 0.1μm:(0μm - 99.9μm)1μm:(100μm - 2000μm) |
| Accuracy | 0-1000μm:≤±(2%H+1μm), H is the standard value1000-2000μm:≤±3%H, H is the standard value |
| Unit | μm / mil |
| Measuring interval | 0.3s |
| Minimum measuring area | Ø = 15mm |
| Minimum substrate thickness | Fe:0.2mm / NFe:0.05mm |
| Display | 128×48 dot matrix LCD |
| Power supply | 2pcs of 1.5V AA alkaline battery |
| Range of operation temperature | 0℃-50℃ |
| Storage temperature range | -20℃-60℃ |
| Host size | 90*65*28 mm |
| Weight(with battery) | 123g |
| Supply Voltage | DC3V |
LS226 front view
LS226 back view
Features
Gravity-based measurement, stable positioning
The instrument uses its own weight to apply pressure, ensuring that the probe is subjected to consistent force during each measurement, effectively reducing human errors and making the measurement data more stable.
Dual display screen design for easy reading
Front and top dual display screen design allows quick reading of thickness values at any angle, improving operational efficiency.
Supports Multi-Point Calibration for Complex Detection
Offers zero adjustment and 1-5 point calibration with dedicated zero plates and standard sheets, ensuring high precision in complex environments.
Ferrous/Non-Ferrous Dual-Purpose Probe
Automatically detects substrate type for accurate coating thickness measurement on various metals, ensuring smarter operation.
Automatic identification of iron substrate
Automatic identification of non-ferrous substrates
High-Precision Measurement with Certified Accuracy
The instrument test accuracy can reach up to 2%H+1μm, ensuring that it has passed the inspection of the National Authoritative Metrology Institute.
Continuous Measurement for Large Areas
Slides over surfaces, capturing data in 0.1s with real-time max/min display, ideal for large-area measurement.
Data storage function
The instrument has a built-in storage chip that can save 9 sets of test data for easy viewing at any time.
Freely Switch Between Normal and QC Modes
Choose between normal and QC modes as needed, adapting to various applications.
Measures Coating Thickness on Ultra-Thin Substrates
Minimum thickness: Fe: 0.2mm / NFe: 0.05mm, ideal for thin plate testing.
Accurate Data, Exceeding International Brands
High-precision sensors and digital probe technology ensure smaller errors and higher repeatability, surpassing international standards.
Bluetooth-Enabled APP for Efficient Data Management
Built-in Bluetooth communication, can connect to mobile phone APP to realize multiple sets of data storage, analysis and measurement report sharing, improve data management efficiency.
Durable Carbide Probe with High Wear Resistance
Cemented carbide construction ensures durability and accuracy, even with frequent use or rough surfaces.
Small and portable
Lightweight and portable, operates one-handed for fast, easy, non-destructive coating thickness measurement on nearly all metals.
Switchable units (μm/mil)
0.3s fast measurement
Negative display for zero calibration accuracy
Temperature compensation for stable data
Qualifications and Standards
Standards for the product:
GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Software Download
The LS226 coating thickness gauge is equipped with an APP that supports Android OS version 7.0 and higher. It can be installed through the following ways:
1) Scan the QR code on the instrument with your mobile browser, follow the instructions to download and install.
2) Click the link to install the APP.
3) Search for "UT and HL" (not case sensitive) in the APP Store/Google Play to install the application.
Packaging
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Coating Thickness Gauge | 1 | Set |
| 2 | Fe zero-adjustment plate | 1 | pcs |
| 3 | NFe zero-adjustment plate | 1 | pcs |
| 4 | Standard film | 5 | pcs |
| 5 | User manual | 1 | pcs |
Videos
LS226 Operation Video
