LS161H Transmission Meter

Name: LS161H Transmission Meter
Brand: Linshang
SKU: LS161H
Availability: InStock

Test seven parameters: UV, visible light, IR 940nm, IR 1400nm, Full-IR, TSER, SHGC
Free switching of multiple display modes
Suitable for solar film performance exhibition, production, quality inspection and other occasions

Request A Quote User Manual

Overview

The instrument is a small and portable transmission meter, a real pocket product. It is suitable for simultaneously testing the IR and UV rejection rate, visible light transmittance,total solar energy rejection (TSER) and solar heat gain coefficient (SHGC)of various film materials (such as solar films, explosion-proof films, etc.). The instrument has a variety of display parameter combinations, and users can choose according to their needs.

Parameter Name	Parameter Value
UV Peak Wavelength	365nm
Visible Light Peak Wavelength	380nm-760nm,CIE function of photopic vision
IR Peak Wavelength	Peak wavelength 940nm, 1400nm and Full IR
Solar Heat Gain Coefficient	SHGC( 0.000 ~ 1.000)
Total Solar Energy Rejection	TSER（0.0%-100%)
Resolution	0.1%
Accuracy	±2% (colorless uniform light-transmitting material)
Maximum Sample Thickness	0.8mm
Display	240*240 dot matrix TFT color screen
Weight	about 70g (exclude batteries)
Size	101mm 52mm 25.5mm (LWH)

Feature

Seven-band test, more comprehensive measurement

The instrument supports seven optical parameter tests: UV, visible light, IR 940nm, IR 1400nm, full-IR, SHGC and TSER, meeting the measurement needs of different thin film materials.

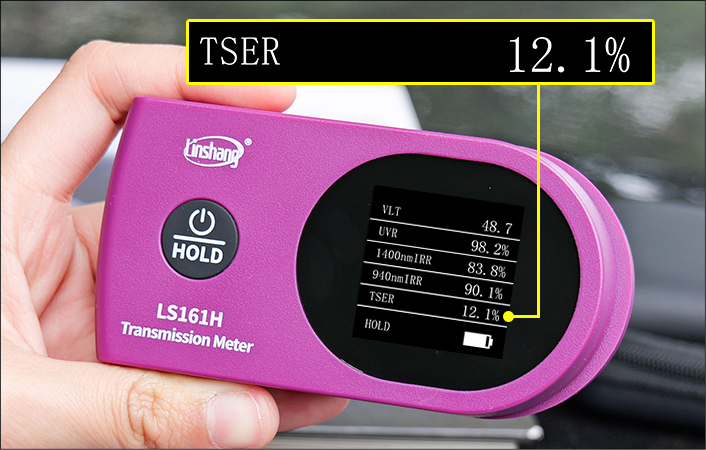

Measure SHGC and TSER

The instrument can test the solar heat gain coefficient (SHGC) and total solar energy rejection (TSER) , offering a more comprehensive evaluation of solar film insulation performance.

Color screen display for clear data visualization

The instrument features a dot matrix TFT color screen that displays IR, UV rejection rates, and visible light transmittance with color-coded progress bars for clear, intuitive results.

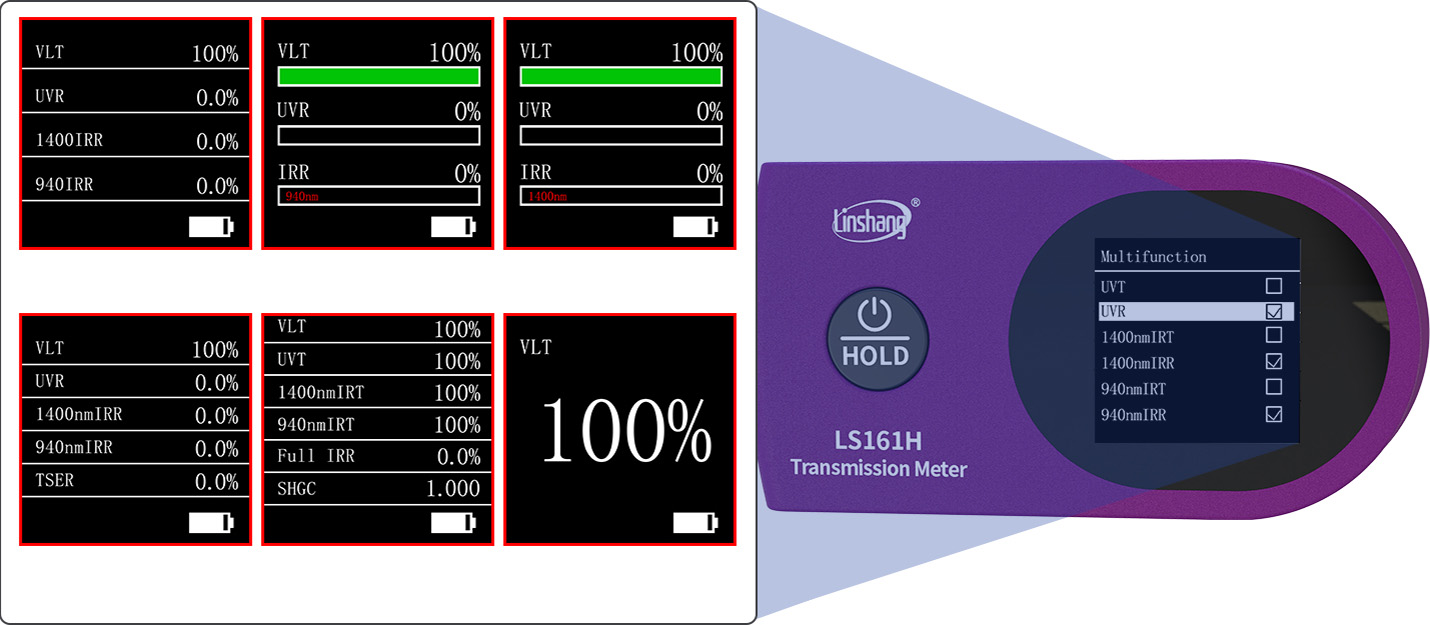

Easily switch between multiple display modes

Different display modes such as rejection rate, transmittance, single display transmittance, etc. can be set.

Compact and Portable

The pocket-sized transmission meter is lightweight and easy to carry, fitting seamlessly into your pocket for convenient measurements on the go.

Real-time dynamic calibration function

The solar film transmission meter has real-time dynamic calibration function. It will self-calibrate if no material in the test slot which is to ensure the accurate test data.

Easy operation

With a user-friendly design, the instrument requires no complicated settings. Just place the film into the test slot, and it will automatically detect and display the measurement results instantly.

Lock data by pressing HOLD button

Press HOLD button can lock data on the screen. Taking away the material, the data is still showed on the screen.

Auto-rotating screen

The instrument’s display can rotate 180°, making it easier to operate and read measurement data.

Ultra-low power consumption, energy efficient

Powered by 4 AAA batteries, the instrument offers long-lasting performance and easy replacement. Its automatic shutdown after 3 minutes of inactivity ensures energy efficiency and extended usage.
